KD SERIES

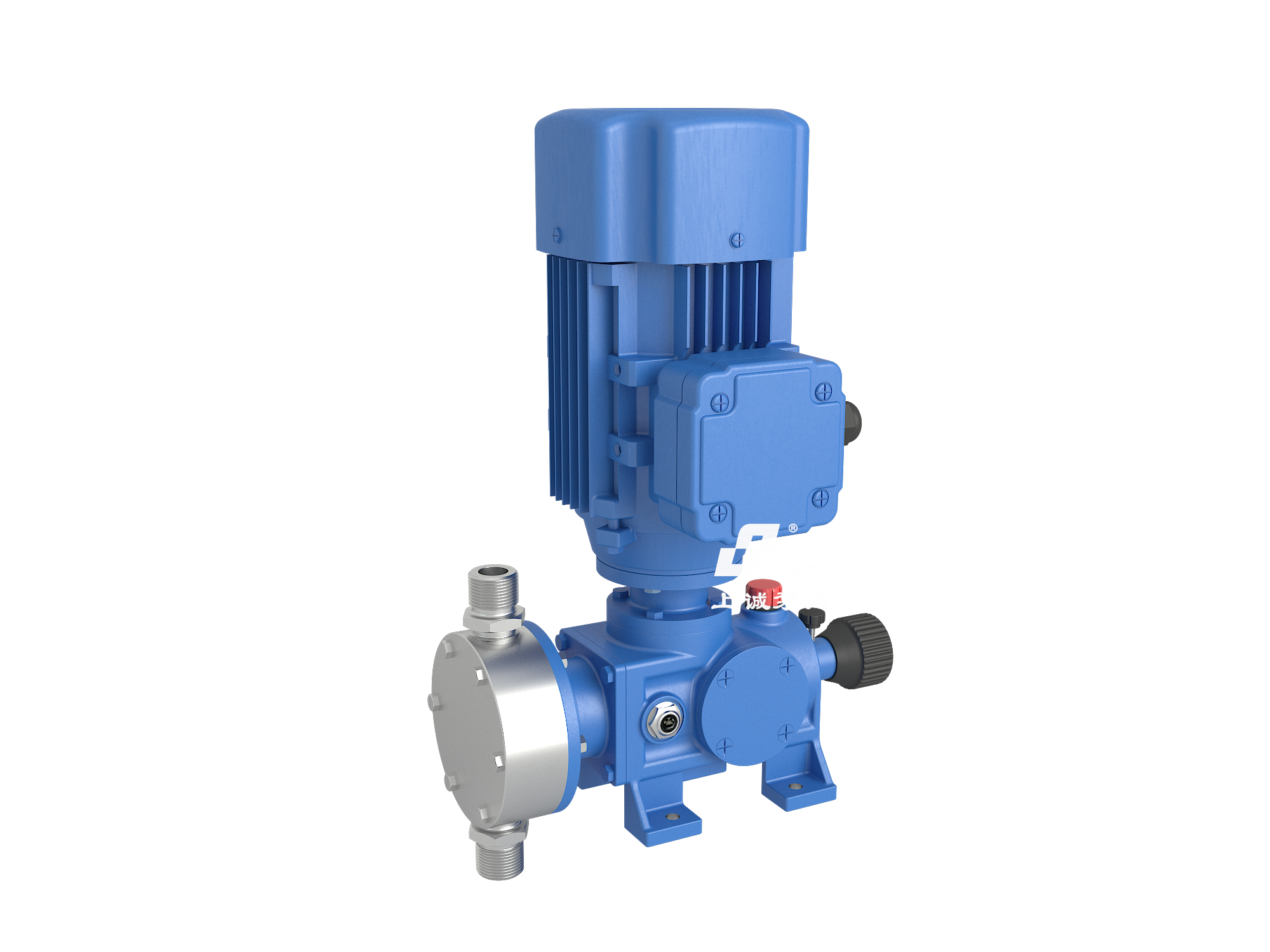

KD Metering Pump

Name: KD Metering Pump
Brand: Shangcheng

Compact metering-pump configuration for controlled industrial liquid delivery.

Inquire about this model →

MODEL / KD KD Metering Pump

SELECTION OVERVIEW

Compact equipment still requires complete duty data.

The KD series is a compact option for metering compatible liquids in industrial and water-treatment systems. Reliable dosing depends on correct sizing of the liquid end and drive, stable suction supply, suitable wetted materials and a discharge system protected against blockage or excess pressure.

PRODUCT VIEWS

KD series configuration.

TYPICAL APPLICATIONS

Compact chemical dosing packages
Water-treatment additive feed
Laboratory and pilot-process systems
General industrial liquid metering

INFORMATION REQUIRED

Liquid name, concentration and operating temperature
Required minimum, normal and maximum delivery rate
Normal and maximum discharge pressure
Viscosity, specific gravity and suction arrangement
Site voltage, frequency and control requirements

OPERATING NOTES

State the minimum, normal and maximum required delivery rate.
Confirm liquid viscosity, gas content and tendency to crystallize.
Install the pump where priming, inspection and adjustment remain accessible.
Coordinate check valves, back-pressure and relief protection with the piping system.

KEY DESIGN POINTS

Four details to confirm for the KD series.

Compact footprint

The vertical arrangement supports installations where equipment space is limited but access must remain practical.

Adjustable liquid delivery

Capacity can be set for the required process duty after the usable adjustment range is confirmed.

Flexible project fit

Connections, wetted materials and motor details can be reviewed for the target dosing system.

Straightforward integration

The configuration suits packaged equipment when suction, discharge and control requirements are planned together.

BEFORE ORDERING

Confirm the dosing system, not only the pump model.

Liquid: provide the complete chemical name, concentration, temperature and any cleaning fluid.
Capacity: state the minimum, normal and maximum required delivery rate and adjustment method.
Pressure: state normal and maximum discharge pressure, injection-point conditions and possible transients.
Suction: describe tank level, suction lift, pipe size, length, valves and priming conditions.
Accessories: identify requirements for relief, back-pressure, pulsation control, calibration or automatic control.

MODEL INQUIRY

Let us verify the dosing duty.

Send the liquid, concentration, required capacity, discharge pressure, temperature and installation details. We will review the configuration and wetted-material compatibility.
