GB-S SERIES

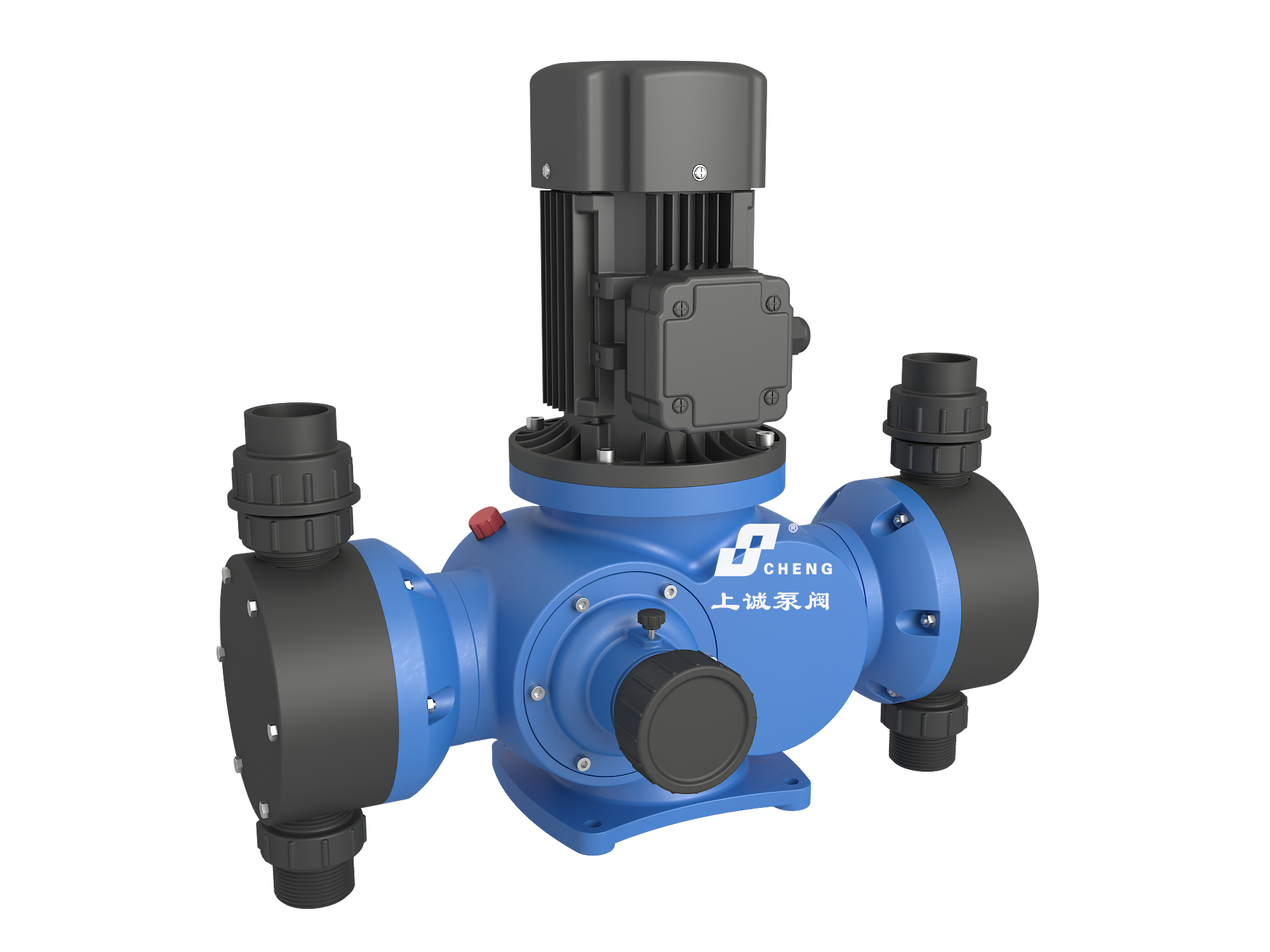

GB-S Metering Pump

Name: GB-S Metering Pump
Brand: Shangcheng

Mechanical diaphragm metering pump for controlled chemical dosing and repeatable liquid delivery.

Inquire about this model →

MODEL / GB-S GB-S Metering Pump

SELECTION OVERVIEW

Compact dosing starts with stable adjustment.

The GB-S series is intended for controlled chemical feed where the required capacity must be adjusted to suit the process. Final configuration depends on the liquid, required delivery rate, discharge pressure, temperature, wetted-material compatibility and installation conditions.

PRODUCT VIEWS

GB-S series configuration.

TYPICAL APPLICATIONS

Water-treatment chemical dosing
Industrial process additive feed
pH adjustment and neutralization systems
Packaged dosing skids and utility systems

INFORMATION REQUIRED

Liquid name, concentration and operating temperature
Required minimum, normal and maximum delivery rate
Normal and maximum discharge pressure
Viscosity, specific gravity and suction arrangement
Site voltage, frequency and control requirements

OPERATING NOTES

Confirm chemical compatibility for every wetted component.
Keep the suction line short, airtight and appropriately sized.
Prime the pump before operation and prevent dry running or blocked discharge.
Use a pressure-relief arrangement where the system can be isolated or overpressurized.

KEY DESIGN POINTS

Four details to confirm for the GB-S series.

Controlled capacity adjustment

The delivery rate can be matched to the process requirement after the actual operating point and adjustment range are reviewed.

Diaphragm-separated drive

The diaphragm arrangement separates the pumped liquid from the drive mechanism for practical chemical dosing service.

Compact installation

The upright motor and compact pump body suit packaged dosing systems where floor space and service access matter.

Application-led configuration

Wetted materials, connections, motor and accessories are selected against the complete liquid and site data.

BEFORE ORDERING

Confirm the dosing system, not only the pump model.

Liquid: provide the complete chemical name, concentration, temperature and any cleaning fluid.
Capacity: state the minimum, normal and maximum required delivery rate and adjustment method.
Pressure: state normal and maximum discharge pressure, injection-point conditions and possible transients.
Suction: describe tank level, suction lift, pipe size, length, valves and priming conditions.
Accessories: identify requirements for relief, back-pressure, pulsation control, calibration or automatic control.

MODEL INQUIRY

Let us verify the dosing duty.

Send the liquid, concentration, required capacity, discharge pressure, temperature and installation details. We will review the configuration and wetted-material compatibility.
