QBK-W

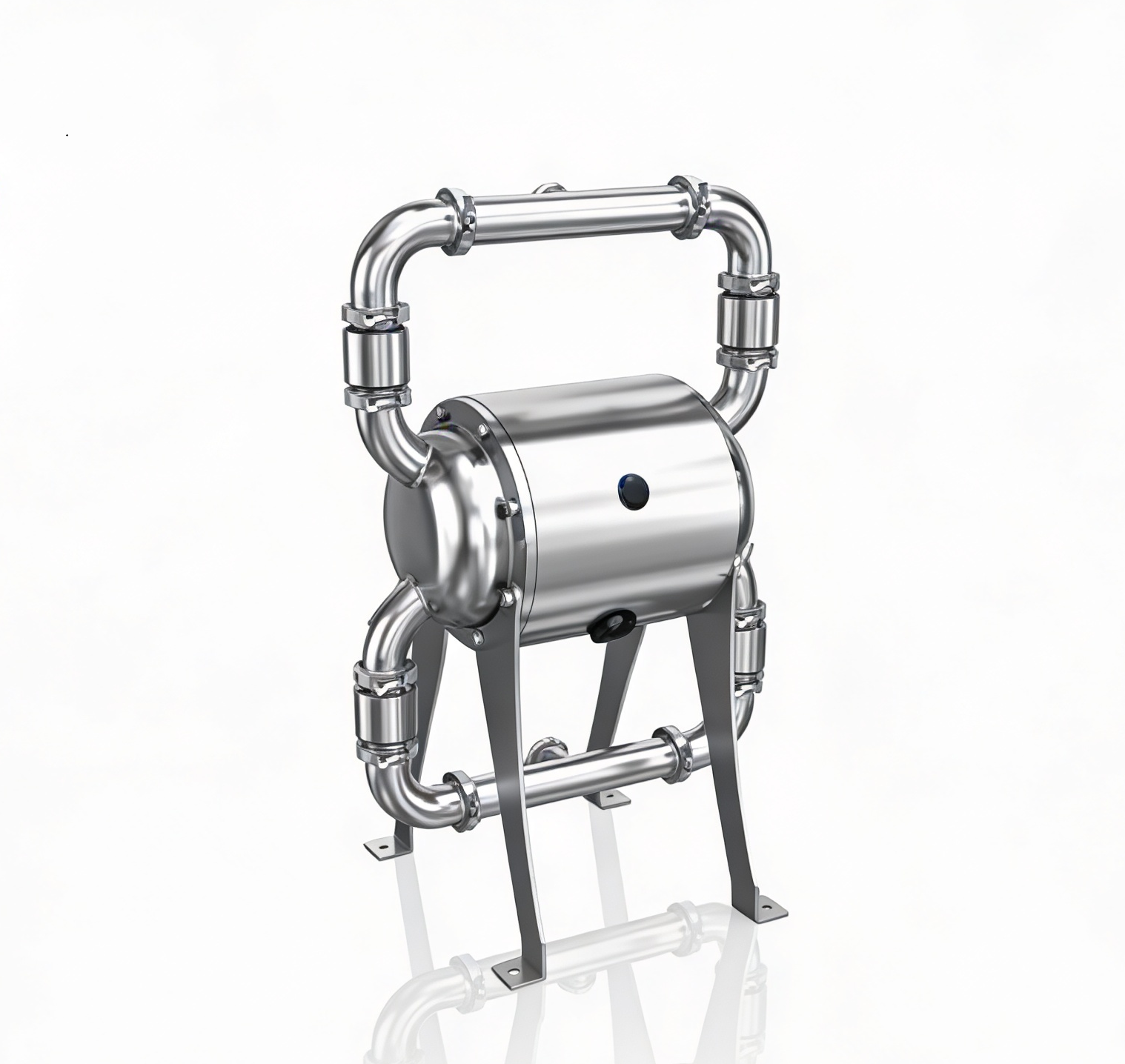

QBK-W Sanitary Air Operated Diaphragm Pump
Stainless-steel sanitary-duty pneumatic transfer for compatible food, beverage, pharmaceutical and personal-care media.
Inquire about this model ↗MODEL / QBK-W
SELECTION OVERVIEW
Confirm the hygienic duty and the operating point.
The QBK-W is a compressed-air-driven double-diaphragm pump with a smooth stainless-steel sanitary-style flow path and clamp-connected piping. It is intended for compatible food, beverage, pharmaceutical and personal-care transfer duties. Confirm the stainless grade, surface finish, diaphragm and valve materials, cleaning method and required hygienic standard before ordering.
INFORMATION REQUIRED
- Product name, viscosity, temperature and solids
- Required flow, discharge pressure and suction conditions
- Stainless grade, surface finish and connection standard
- Diaphragm, ball and seat compatibility with product and cleaners
OPERATING NOTES
- Use clean, filtered compressed air with adequate pressure and volume.
- Support connected pipework so its weight is not carried by the pump.
- Flush the wetted path after media that can settle, dry or solidify.
- Stop the pump and inspect the diaphragm if liquid appears at the exhaust.
KEY DESIGN POINTS
Configured for cleanability, dependable reversing and material control.
Smooth stainless-steel sanitary-style wetted construction
Clamp-connected flow path for accessible disassembly
Pilot-operated air valve designed to reduce dead-point stalling
Reference sizes from QBK-W-20PF46 through QBK-W-125PF46
TECHNICAL DOCUMENT
QBK-W sanitary diaphragm pump manual.
Review the QBK-W working principle, design features, reference performance data, application guidance, operating precautions and exploded construction drawing.
View or download PDF →Official Shangcheng watermarked document · PDF · 4 spreadsMODEL INQUIRY
