TYPICAL APPLICATIONS
- Building water supply
- HVAC circulation
- Industrial cooling water
- General clean-water transfer
Request a quote ↗← Inline Centrifugal Pumps
ISW
Horizontal Inline Centrifugal Pump
Horizontal close-coupled centrifugal arrangement for accessible installation and general clean-liquid transfer.
Inquire about this model ↗MODEL / ISW
SELECTION OVERVIEW
Confirm the duty before confirming the model.
ISG vertical and ISW horizontal single-stage centrifugal pumps are designed for clean water and liquids with similar physical properties. The two arrangements share a conventional centrifugal pumping principle while offering different installation footprints and piping layouts.
PRODUCT VIEWS
Inspect the product from every side.

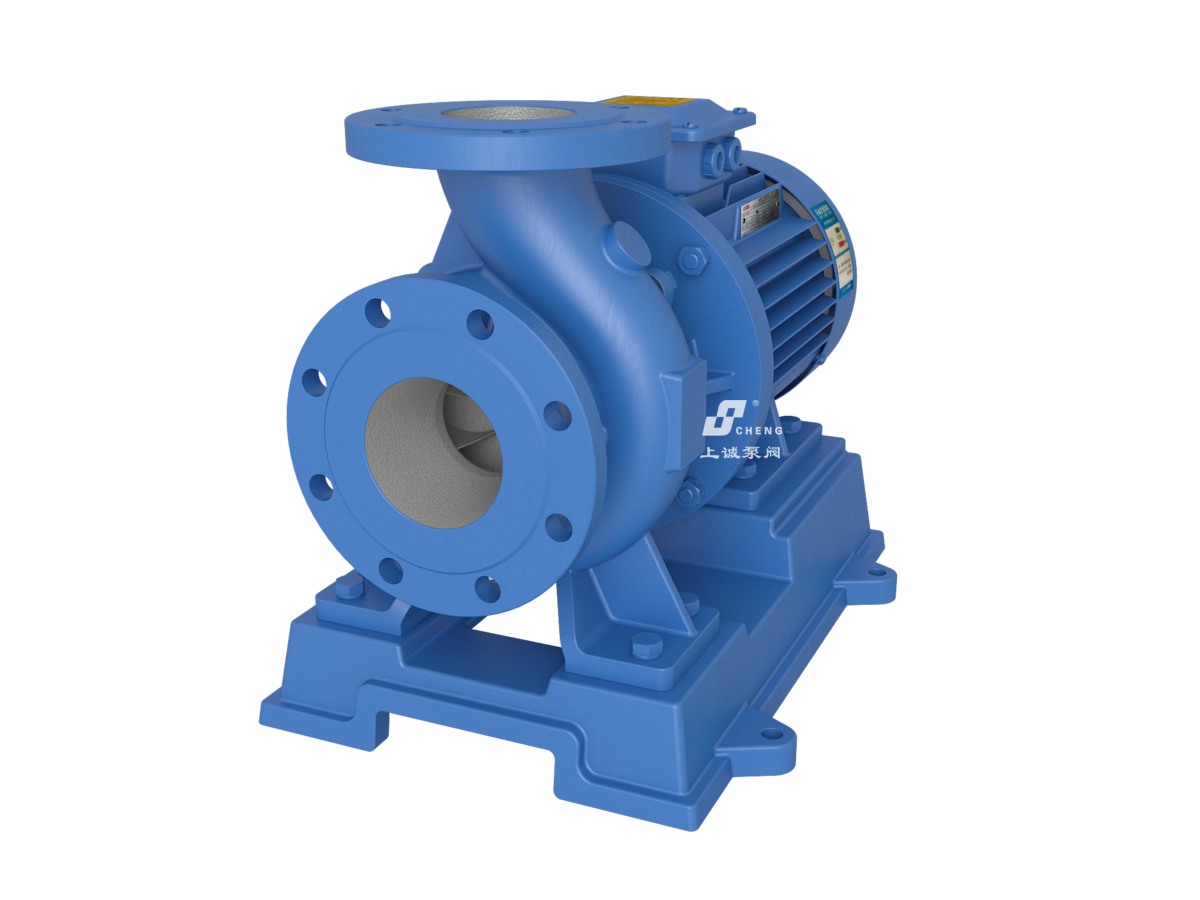

VIEW / 01

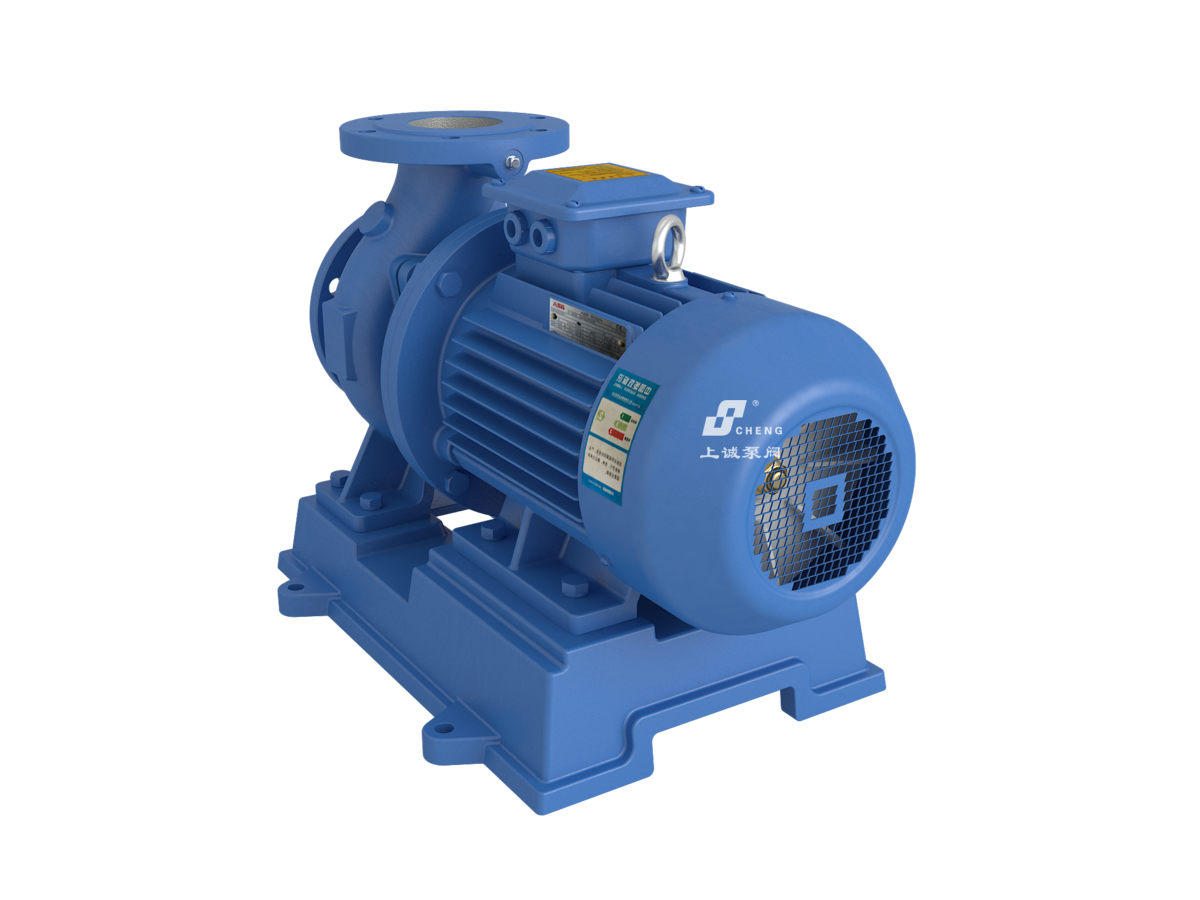

VIEW / 02

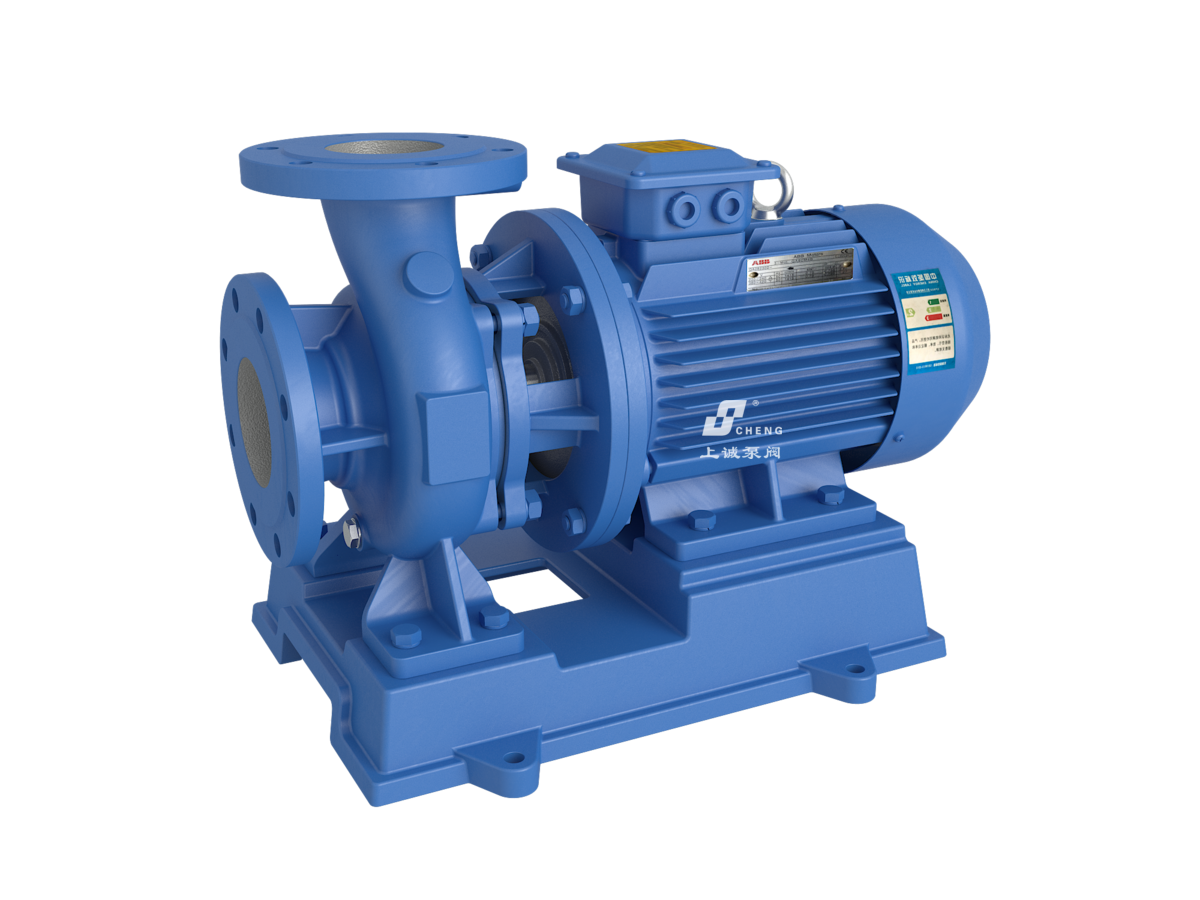

VIEW / 03

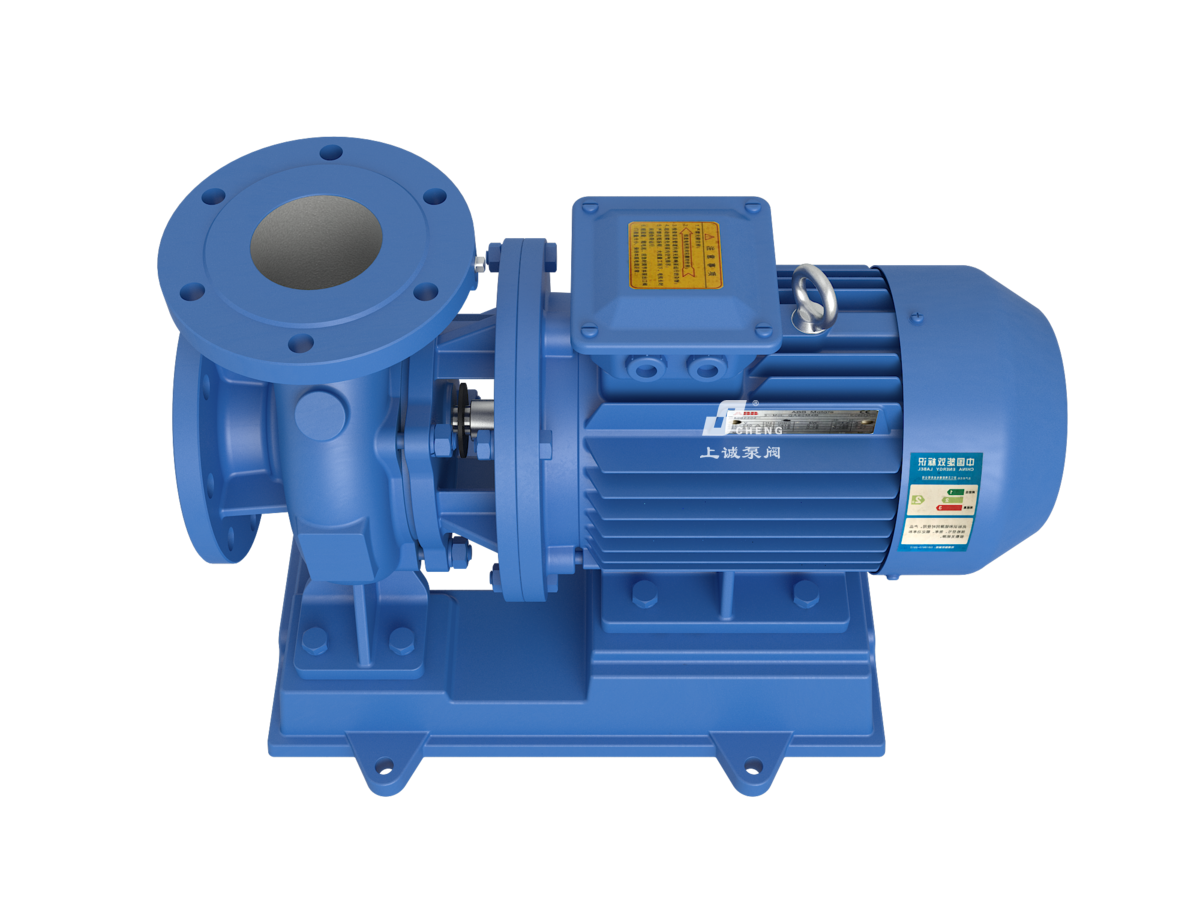

VIEW / 04

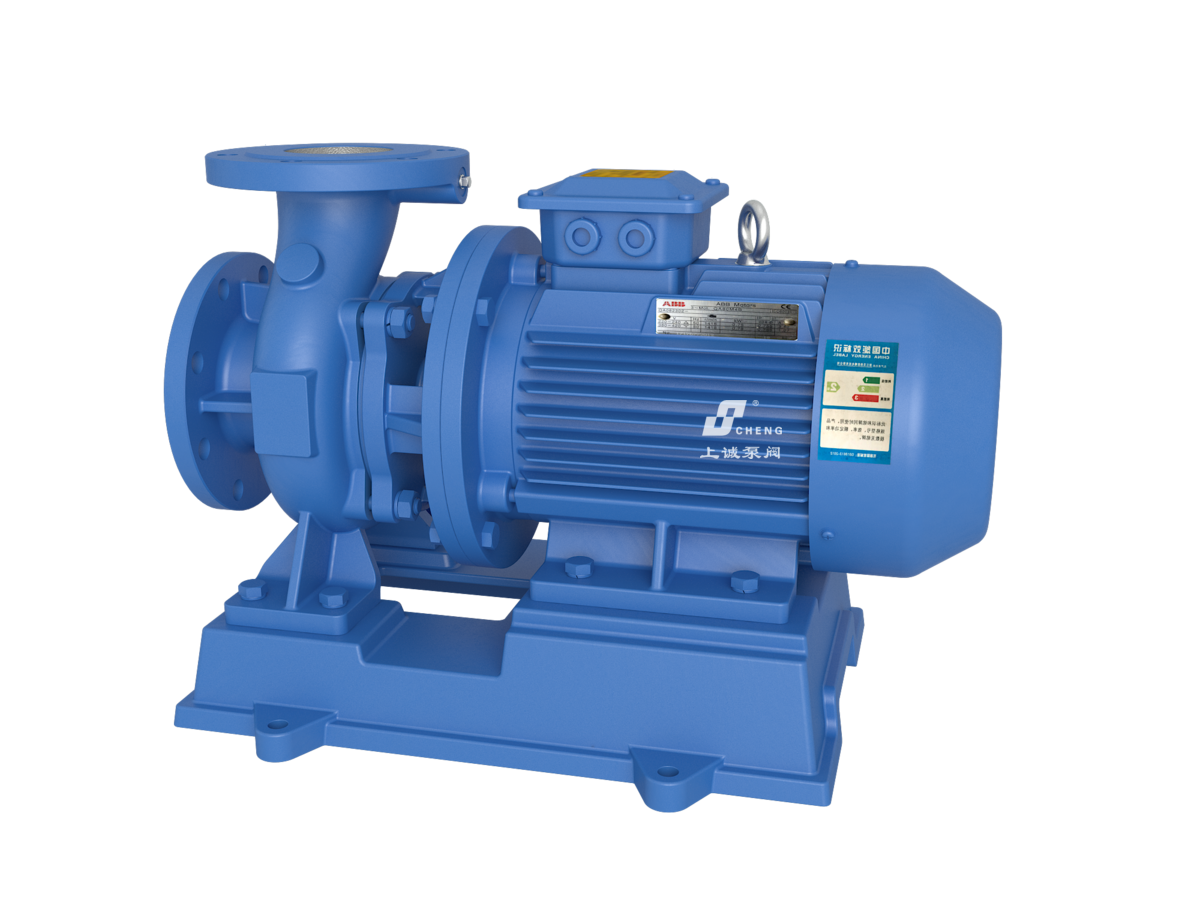

VIEW / 05

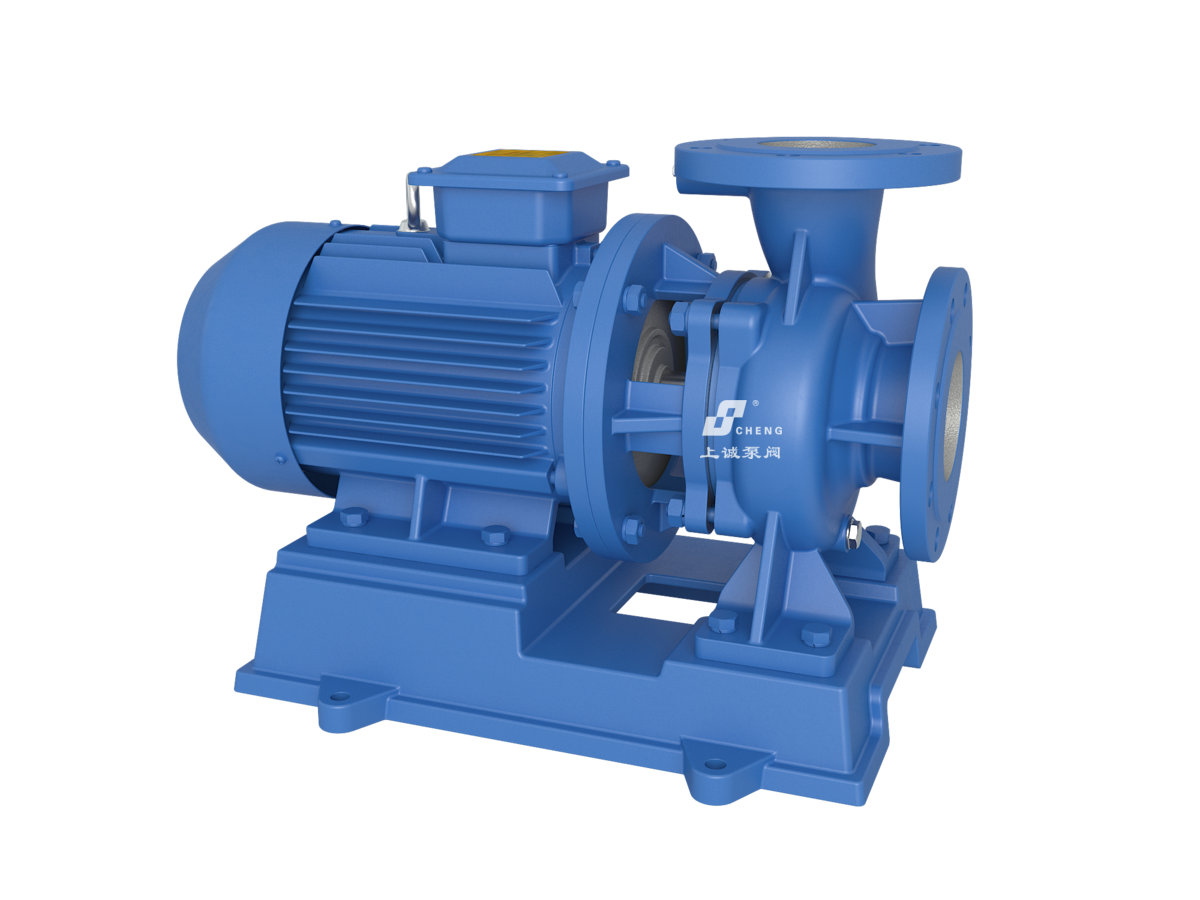

VIEW / 06INFORMATION REQUIRED
- Required flow
- Total dynamic head
- Liquid temperature and properties
- Pipe size, installation layout and power supply
OPERATING NOTES
- Use with clean liquids without abrasive solids unless specifically configured otherwise.
- Keep the suction line correctly sized and flooded or properly primed before operation.
- Select around the actual system duty point rather than pipe diameter or motor power alone.
KEY DESIGN POINTS
Built around the duty, installation and medium.
Vertical or horizontal installation options
Single-stage centrifugal hydraulic design
Direct-coupled arrangement
Suitable for clean-liquid circulation
MODEL INQUIRY
Let us verify the operating point.
Send the liquid, flow, head, temperature and installation details together with the requested model.
