china GDL Vertical Multistage Pipeline Pump manufacturers
Product Overview
GDL type multi-stage Pipe centrifugal pumps My unit at home and abroad based on the best combination of pump-type of the user requirements and fire related standards and standards based design and manufacturing JB/TQ6435-92 new generation of products. Vertical structure of segmental external stainless steel shell, making import and export of pumps and at the same level as the same caliber, can as Valve Being installed in the pipeline as it also brings together Multi stage Pump The high-pressure, small footprint and vertical pump Pipeline Pump The advantages of easy installation. With high efficiency, smooth running, etc, and seal with wear-resistant mechanical seal, no leakage and long service life.
Features
With high efficiency, stable etc., and seal with wear-resistant mechanical seals, temperature ≤ 100 ℃, working pressure ≤ 1.6MPa (16kg/cm3). Flow :5-300m3 / h speed 2900r/min head :5-250m
Usage
GDL-type pumps are suitable for high pressure operation systems transport water or physical and chemical properties of liquids, such as high-rise building water supply, boiler feed water, fire systems, transmitting or pressurization purposes. GDLF pump is made of stainless (ZG1Cr18Ni9Ti) material manufactured for chemical, food, brewing, pharmaceutical, textile and other industries. Can be customized based on user requests 304 or 316L stainless steel material.

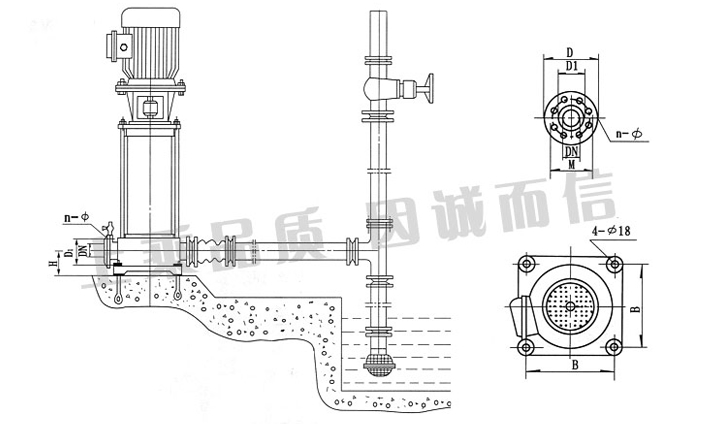

installation size
installation size and dimension
Performance Parameters
| Model | Flow (m3/ H) | Head (m) | Suction (m) | Motor Power (kw) |
| 25GDL2-12 × 3 | 2 | 36 | 7.5 | 1.1 |
| 25GDL2-12 × 4 | 48 | 1.1 | ||
| 25GDL2-12 × 5 | 60 | 1.5 | ||
| 25GDL2-12 × 6 | 72 | 1.5 | ||
| 25GDL2-12 × 7 | 84 | 2.2 | ||
| 25GDL2-12 × 8 | 96 | 2.2 | ||
| 25GDL2-12 × 9 | 108 | 2.2 | ||
| 25GDL2-12 × 10 | 120 | 3 | ||
| 25GDL2-12 × 11 | 132 | 3 | ||
| 25GDL2-12 × 12 | 144 | 3 | ||
| 25GDL4-11 × 3 | 4 | 33 | 1.1 | |
| 25GDL4-11 × 4 | 44 | 1.5 | ||
| 25GDL4-11 × 5 | 55 | 2.2 | ||
| 25GDL4-11 × 6 | 66 | 2.2 | ||
| 25GDL4-11 × 7 | 77 | 3 | ||
| 25GDL4-11 × 8 | 88 | 3 | ||
| 25GDL4-11 × 9 | 99 | 3 | ||
| 25GDL4-11 × 10 | 110 | 4 | ||
| 25GDL4-11 × 11 | 121 | 4 | ||
| 25GDL4-11 × 12 | 132 | 4 | ||
| 25GDL4-11 × 13 | 143 | 4 | ||
| 40GDL6-12 × 3 | 6 | 36 | 1.5 | |
| 40GDL6-12 × 4 | 48 | 2.2 | ||
| 40GDL6-12 × 5 | 60 | 2.2 | ||
| 40GDL6-12 × 6 | 72 | 3 | ||
| 40GDL6-12 × 7 | 84 | 3 | ||
| 40GDL6-12 × 8 | 96 | 4 | ||
| 40GDL6-12 × 9 | 108 | 4 | ||
| 40GDL6-12 × 10 | 120 | 4 | ||
| 40GDL6-12 × 11 | 132 | 5.5 | ||
| 40GDL6-12 × 12 | 144 | 5.5 | ||
| 50GDL12-15 × 2 | 12 | 30 | 7 | 2.2 |
| 50GDL12-15 × 3 | 45 | 3 | ||
| 50GDL12-15 × 4 | 60 | 4 | ||
| 50GDL12-15 × 5 | 75 | 5.5 | ||
| 50GDL12-15 × 6 | 90 | 5.5 | ||
| 50GDL12-15 × 7 | 105 | 7.5 | ||
| 50GDL12-15 × 8 | 120 | 75 | ||
| 50GDL12-15 × 9 | 135 | 11 | ||
| 50GDL12-15 × 10 | 150 | 11 | ||
| 50GDL18-15 × 3 | 18 | 45 | 4 | |
| 50GDL18-15 × 4 | 60 | 5.5 | ||
| 50GDL18-15 × 5 | 75 | 7.5 | ||
| 50GDL18-15 × 6 | 90 | 7.5 | ||
| 50GDL18-15 × 7 | 105 | 11 | ||
| 50GDL18-15 × 8 | 120 | 11 | ||
| 50GDL18-15 × 9 | 135 | 15 | ||
| 50GDL18-15 × 10 | 150 | 15 | ||
| 65GDL24-12 × 2 | 24 | 24 | 6 | 3 |
| 65GDL24-12 × 3 | 36 | 4 | ||
| 65GDL24-12 × 4 | 48 | 5.5 | ||
| 65GDL24-12 × 5 | 60 | 7.5 | ||
| 65GDL24-12 × 6 | 72 | 7.5 | ||
| 6S5GDL24-12 × 7 | 84 | 11 | ||
| 65GDL24-12 × 8 | 96 | 11 | ||
| 65GDL24-12 × 9 | 108 | 15 | ||
| 65GDL24-12 × 10 | 120 | 15 | ||
| 80GDL36-12 × 2 | 36 | 24 | 5.5 | 4 |
| 80GDL36-12 × 3 | 36 | 5.5 | ||
| 80GDL36-12 × 4 | 48 | 7.5 | ||
| 80GDL36-12 × 5 | 60 | 11 | ||
| 80GDL36-12 × 6 | 72 | 11 | ||
| 80GDL36-12 × 7 | 84 | 15 | ||
| 80GDL36-12 × 8 | 96 | 15 | ||
| 80GDL36-12 × 9 | 108 | 18.5 | ||
| 80GDL36-12 × 10 | 120 | 18.5 | ||
| 80GDL54-14 × 2 | 54 | 28 | 5 | 7.5 |
| 80GDL54-14 × 3 | 42 | 11 | ||
| 80GDL54-14 × 4 | 56 | 15 | ||
| 80GDL54-14 × 5 | 70 | 18.5 | ||
| 80GDL54-14 × 6 | 84 | 18.5 | ||
| 80GDL54-14 × 7 | 98 | 22 | ||
| 100GDL72-14 × 2 | 72 | 28 | 4.5 | 11 |
| 100GDL72-14 × 3 | 42 | 15 | ||
| 100GDL72-14 × 4 | 56 | 18.5 | ||
| 100GDL72-14 × 5 | 70 | 22 | ||
| 100GDL72-14 × 6 | 84 | 30 | ||
| 100GDL72-14 × 7 | 98 | 30 |
