ZCQ-type self-priming magnetic drive pump

Product Overview
ZCQ-type self-priming magnetic drive pump(Hereinafter referred toSelf-priming pump), The static seal pump to replace the seals, the pump over-current components in a completely sealed state, solve the other pump mechanical seal can not avoid the run, run, drip, leakage of the defects, the pump and over-current components of the material are used corrosion-resistant stainless steel, steel jade ceramic, PTFE and graphite materials, both type CQMagnetic drive pumpFunction, but also set in a self-priming, bottom valve and cited without irrigation, self-priming height of 4 meters.

Features
The compact pump structure, beautiful shape, size, low noise and reliable operation, easy maintenance, can be widely used in petroleum, chemical, pharmaceutical, electric heavy fluid, venom, volatile liquid, and circulating water equipment, especially the vulnerable leakage, flammable, explosive liquid pumping.

Usage
ZCQ typeSelf-priming magnetic drive pumpApply to industrial and urban water supply and drainage, environmental protection, construction, chemical, pharmaceutical, dye, printing and dyeing, brewing, electricity, electroplating, paper making, mining washing, equipment cooling.

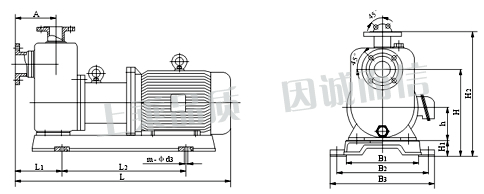

installation size

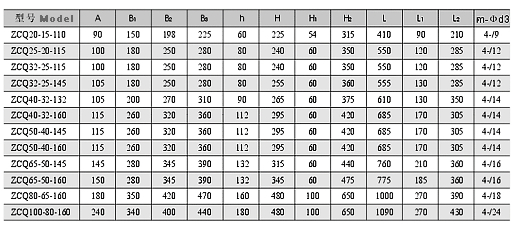

installation size and dimension

Performance Parameters

Model Caliber Head
m
Flow
L / min
Motor Power
KW
Speed
r / min
Voltage
V
Self-priming
m / 3 min
Import Export
ZCQ25-20-115 25 20 15 110 1.1 2900 380 4
ZCQ32-25-115 32 25 15 110 1.1 2900 380 4
ZCQ32-25-145 32 25 25 110 1.1 2900 380 4
ZCQ40-32-132 40 32 20 180 2.2 2900 380 4
ZCQ40-32-160 40 32 32 180 4 2900 380 4
ZCQ50-40-145 50 40 25 240 4 2900 380 4
ZCQ50-40-160 50 40 32 220 4 2900 380 4
ZCQ65-50-145 65 50 25 280 5.5 2900 380 4
ZCQ65-50-160 65 50 32 450 7.5 2900 380 4
ZCQ80-65-125 80 65 20 800 7.5 2900 380 4
ZCQ80-65-160 80 65 32 800 15 2900 380 4
ZCQ100-80-160 100 80 32 1500 22 2900 380 4
Note: The pump body Stainless steel (1Cr18Ni9Ti), the above specifications can be equipped with explosion-proof motor.
