china CQB-F fluorine plastic magnetic drive pumps manufacturers
Product Overview
CQB-F fluorine plasticsMagnetic drive pumpUsing magnetic coupling drive, there is no dynamic seal point, so the complete elimination of the general shaft drive typeCentrifugal pumpSeal Office run, run, drip, drain phenomenon. The over-current parts are made of fluorine plastic industrial ceramics, has excellent corrosion resistance and sealing, not aging, toxin-free advantages. Transmission power 3kW or less DN50mm the following for all fluorine plastic magnetic drive pumps.
Features
Magnetic PumpCompact structure, beautiful appearance, small size, low noise, reliable, easy to use vertical pump with a metal shell fixed, so the weight of the pump sufficient to support the pipeline, and to facilitate the use and maintenance. Flow :1.8-100m3 / h Head :8-32m Power :0.12-22KW Suitable temperature: -20 ~ 100 ℃
Usage
Corrosive liquid without solid particles, acids, alkalis, alcohol, bleach, photography solution, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, 4 ethylene oxide, water, salt and so on.

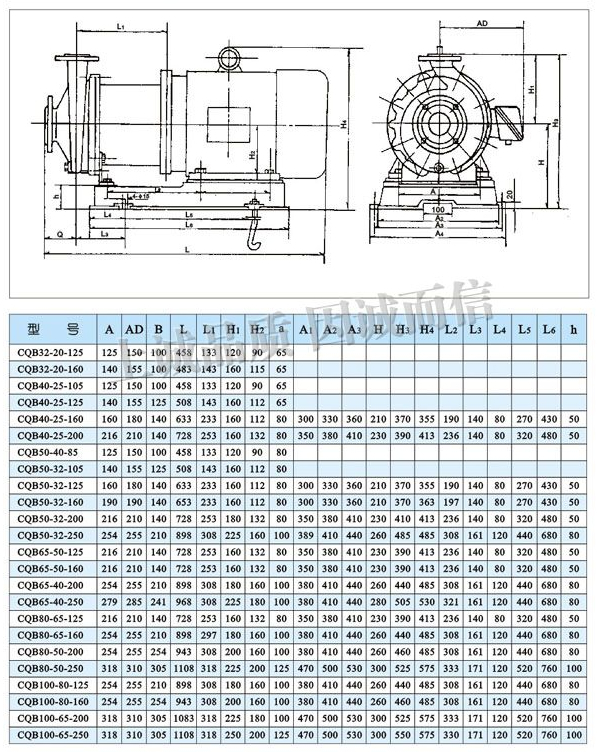

installation size
Performance Parameters
| Model | Flow (M3/ H) |
Head (M) |
Amount of cavitation for (M) |
Speed (R / min) |
Diameter (mm) | Temperature (℃) |
Voltage (V) |
|
| Import | Export | |||||||
| CQB16-12-18F | 1.8 | 8 | 6.0 | 2900 | Φ16 | Φ12 | <80 | 220/380 |
| CQB20-14-100F | 3 | 12 | 6.0 | 2900 | Φ20 | Φ14 | <80 | 220/380 |
| CQB32-25-125F | 3.2 | 20 | 5.0 | 2900 | Φ32 | Φ20 | <80 | 380 |
| CQB40-32-115F | 6.3 | 15 | 6.0 | 2900 | Φ40 | Φ32 | <80 | 380 |
| CQB40-32-145F | 6.3 | 25 | 5.0 | 2900 | Φ40 | Φ32 | <80 | 380 |
| CQB50-40-125F | 12.5 | 20 | 3.5 | 2900 | Φ50 | Φ40 | <80 | 380 |
| CQB50-40-160F | 12.5 | 32 | 3.5 | 2900 | Φ50 | Φ40 | <80 | 380 |
| CQB65-50-125F | 25 | 20 | 4.0 | 2900 | Φ65 | Φ50 | <80 | 380 |
| CQB65-50-160F | 25 | 32 | 4.0 | 2900 | Φ65 | Φ50 | <100 | 380 |
| CQB80-65-125F | 50 | 20 | 4.0 | 2900 | Φ80 | Φ65 | <100 | 380 |
| CQB80-65-160F | 50 | 32 | 4.0 | 2900 | Φ80 | Φ65 | <100 | 380 |
