china CQB heavy (high temperature) magnetic drive pump manufacturers
Product Overview
CQB-G type high temperature magneticCentrifugal pumpUsually by the motor, magnetic coupling andCorrosion-resistant centrifugal pumpComposition. The main feature is the use of magnetic coupling transmits power, completely leak-free use of multi-cycle cooling structure, the driving force and the magnetic drive to ensure the reliability and stability, while reducing by column coupling with the pump noise and vibration, should be demolished type and pin coupling be used to increase the pump's structure more conducive to the heat pump. Also very user-friendly repair or replacement of parts, the pump part of the outer rotor cooling fan is also designed to ensure the stability of magnetic steel. CQB SeriesMagnetic PumpIs the magnetic pump nationwide design team developed a new type of decay completely leak-free pump, its technical and economic indicators and the foreign like product level of the late eighties quite.
Features
Over-current parts of the pump may be needed, respectively 304,304 L, 321,316,316 L, CD4MCu, materials such as corrosion. Flow 3.2 ~ 100m3 / h Head 8 ~ 80m, speed 2900r/min
Usage
Corrosive liquid without solid particles, acids, alkalis, alcohol, bleach, photography solution, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, 4 ethylene oxide, water, salt and so on.

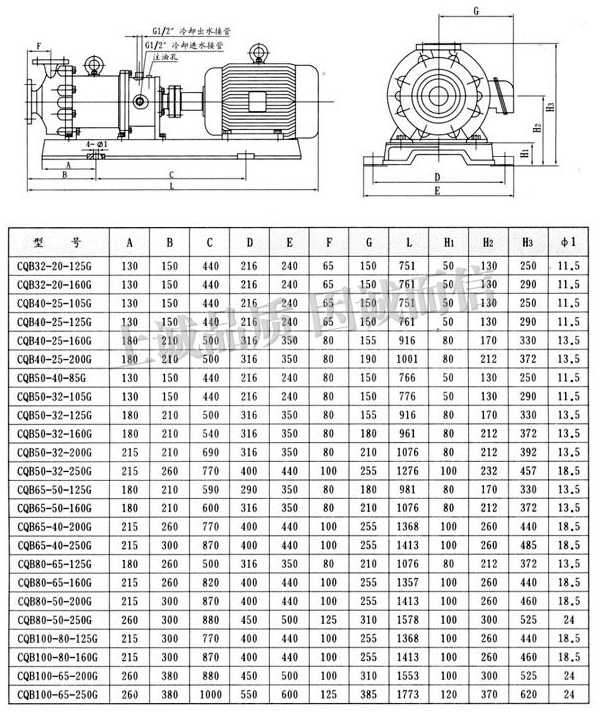

installation size
Performance Parameters
| CQB-G heavy (high temperature) magnetic drive pump | |||||||||
| Model | Flow Q (M3/ H) |
Head (M) |
Speed n (R / min) |
Efficiency η (%) |
Motor type | Motor Power (Kw) |
|||
| CQB32-20-125G | 3.2 | 20 | 2900 | 35 | YB802-2 | 1.1 | |||
| CQB32-20-160G | 3.2 | 32 | 2900 | 35 | YB90S-2 | 1.5 | |||
| CQB40-25-105G | 6.3 | 12.5 | 2900 | 45 | YB802-2 | 1.1 | |||
| CQB40-25-125G | 6.3 | 20 | 2900 | 42 | YB90L-2 | 2.2 | |||
| CQB40-25-160G | 6.3 | 32 | 2900 | 35 | YB100L-2 | 3 | |||
| CQB40-25-200G | 6.3 | 50 | 2900 | 28 | YB132S1-2 | 5.5 | |||
| CQB50-40-85G | 12.5 | 8 | 2900 | 56 | YB802-2 | 1.1 | |||
| CQB50-32-105G | 12.5 | 12.5 | 2900 | 54 | YB90L-2 | 2.2 | |||
| CQB50-32-125G | 12.5 | 20 | 2900 | 50 | YB100L-2 | 3 | |||
| CQB50-32-160G | 12.5 | 32 | 2900 | 46 | YB112M-2 | 4 | |||
| CQB50-32-200G | 12.5 | 50 | 2900 | 39 | YB132S2-2 | 7.5 | |||
| CQB50-32-250G | 12.5 | 80 | 2900 | 30 | YB160L-2 | 18.5 | |||
| CQB65-50-125G | 25 | 20 | 2900 | 58 | YB132S1-2 | 5.5 | |||
| CQB65-50-160G | 25 | 32 | 2900 | 56 | YB132S2-2 | 7.5 | |||
| CQB65-40-200G | 25 | 50 | 2900 | 49 | YB160M-2 | 15 | |||
| CQB65-40-250G | 25 | 80 | 2900 | 46 | YB180M-2 | 22 | |||
| CQB80-65-125G | 50 | 20 | 2900 | 66 | YB132S2-2 | 7.5 | |||
| CQB80-65-160G | 50 | 32 | 2900 | 64 | YB160M-2 | 15 | |||
| CQB80-50-200G | 50 | 50 | 2900 | 60 | YB160L-2 | 18.5 | |||
| CQB80-50-250G | 50 | 80 | 2900 | 55 | YB200L1-2 | 30 | |||
| CQB100-80-125G | 100 | 20 | 2900 | 72 | YB160M-2 | 15 | |||
| CQB100-80-160G | 100 | 32 | 2900 | 70 | YB160M-2 | 22 | |||
| CQB100-65-200G | 100 | 50 | 2900 | 68 | YB200L1-2 | 30 | |||
| CQB100-65-250G | 100 | 80 | 2900 | 64 | YB225M-2 | 45 | |||
| Note: The above specifications can be equipped with explosion-proof motor. | |||||||||
