AS-type tear Sewage Pumps

Product Overview
AS Series submersibleSewage pumpABS by Germany's advanced technology, especially suitable for handling with hard solid, liquid fiber, and especially dirty, sticky and slippery liquid. All pumps are fitted with AS splitting mechanism to split water in the long fiber, bags, belt, grass, cloth strips torn discharged. Therefore, the sewage will not be very reliable run blocking.

Features
An advanced technology, sewage capacity, no plug, effective diameter φ30-φ80 mm by solid particles.
2 torn bodies to the fibers tear, cut, and then the smooth emission, no need to add the filter pump.
3 designed, matching motor power, energy-saving effect is remarkable.
4 with the latest materials, mechanical seal, pump safety can run straight for more than 8000 hours.
5 compact, easy to move, easy to install, can reduce the project cost, construction of pump house no.
6 can be used within the scope of the whole head, but not of motor overload.
7-day float and the required water level can change, automatic start and stop the pump without special care.
8 pairs of rails automatically install the system, it gives installation and maintenance, a great convenience, may not be required to access the sump.
9 is equipped with automatic control box to protect the product leakage, water leakage and overload were effectively protected, improved product safety and reliability.

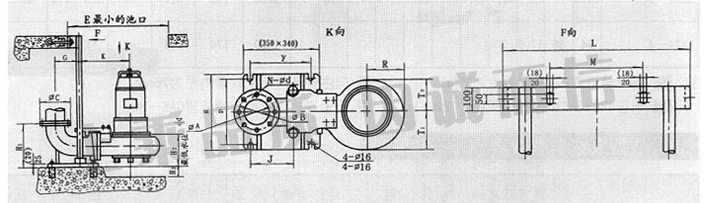

installation size

installation size and dimension

Performance Parameters

Model Flow
m3/ H
Head
(M)
Power
(Kw)
Speed
(R / min)
Rated voltage
(V)
Equipped with a hose diameter
(Mm)
AS10-2W/CB 15 4 1.1 2850 220 76
AS10-2CB 15 4.5 1.1 2850 380 76
AS16-2CB 29 7.6 1.5 2850 380 76
AS30-2CB 42 11 3.0 2850 380 76
AS55-2CB 45 13 5.5 2900 380 127
AS55-4CB 100 7.5 5.5 1450 380 152
AS75-2CB 60 18 7.5 2900 380 127
AS75-4CB 145 10 7.5 1450 380 152
AV14-4 22 5.8 1.5 1450 380 76
AV55-2 30 20 5.5 2900 380 76
AV75-2 30 25 7.5 2900 380 76
