china ZX series self-priming pump manufacturers
Product Overview
ZX-typeSelf-priming pumpAccording to the relevant technical data and abroad absorption, digestion, improved development to become energy-saving pumps. The pump is self-primingCentrifugal pumpIt has a compact structure, easy operation, smooth running, easy maintenance, high efficiency, long life, and have strong self-priming capacity. Pipeline without bottom valve, before work, only to ensure priming pump body fluid can be. Thus simplifying the piping system, but also improved working conditions.
Features
No need to install underground pipeline valve, before work, only to ensure quantitative pump body water can, according to the customer using the media have cast iron and 304,316 L material, media temperature -20 ℃ -120 ℃, flow :3.2-600m3 / h head :10-80m speed 1450-2900r/min
Usage
Mainly applicable to urban environmental protection, construction, fire, chemical, pharmaceutical, printing and dyeing, brewing, electricity, electroplating, paper, petroleum, mining, equipment cooling. Suitable for clean water, sea water and with acid and alkali, chemical liquid general mushy pulp, medium viscosity 100 centipoise, up to 30% solid content.

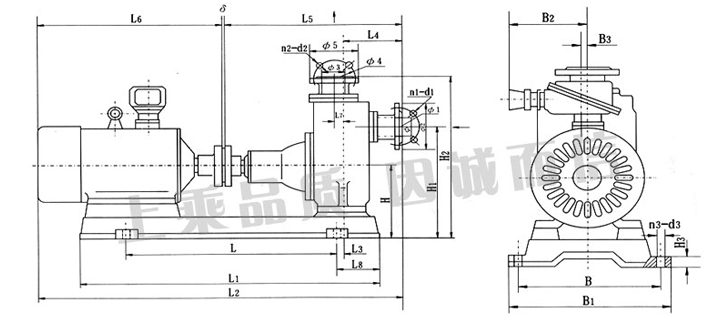

installation size
installation size and dimension
Performance Parameters
| Model | Import (Mm) |
Export (Mm) |
Suction (M) |
Motor (KW) |
Flow (M3/ H) |
Head (M) |
| 25ZX3.2-20 | 25 | 25 | 6.5 | 0.75 | 3.2 | 20 |
| 25ZX3.2-32 | 25 | 25 | 6.5 | 1.1 | 3.2 | 32 |
| 40ZX6.3-20 | 40 | 32 | 6.5 | 1.1 | 6.3 | 20 |
| 40ZX10-40 | 40 | 40 | 6.5 | 4 | 10 | 40 |
| 50ZX15-12 | 50 | 50 | 6.5 | 1.5 | 15 | 12 |
| 50ZX18-20 | 50 | 50 | 6.5 | 2.2 | 18 | 20 |
| 50ZX20-30 | 50 | 50 | 6.5 | 4 | 20 | 30 |
| 50ZX10-40 | 50 | 50 | 6.5 | 4 | 10 | 40 |
| 50ZX12.5-50 | 50 | 50 | 6.5 | 5.5 | 12.5 | 50 |
| 50ZX15-60 | 50 | 50 | 6.5 | 7.5 | 15 | 60 |
| 65ZX30-15 | 65 | 50 | 6.5 | 3 | 30 | 15 |
| 65ZX25-32 | 65 | 50 | 6 | 5.5 | 25 | 32 |
| 80ZX35-13 | 80 | 65 | 6 | 2.2 | 35 | 13 |
| 80ZX40-22 | 80 | 65 | 6 | 5.5 | 40 | 22 |
| 80ZX50-32 | 80 | 80 | 6 | 7.5 | 50 | 32 |
| 80ZX60-55 | 80 | 80 | 6 | 15 | 60 | 55 |
| 80ZX60-70 | 80 | 80 | 6 | 22 | 60 | 70 |
| 100ZX100-20 | 100 | 80 | 6 | 11 | 100 | 20 |
| 100ZX100-40 | 100 | 100 | 6 | 18.5 | 100 | 40 |
| 100ZX100-65 | 100 | 100 | 6 | 30 | 100 | 65 |
| 100ZX70-80 | 100 | 100 | 6 | 30 | 70 | 80 |
| 150ZX160-55 | 150 | 100 | 5 | 45 | 160 | 55 |
| 150ZX150-80 | 150 | 100 | 5 | 55 | 150 | 80 |
| 200ZX280-65 | 200 | 150 | 5 | 90 | 280 | 65 |
