JMZ Stainless Steel Suction Wine Pump and Chemical Pump

Product Overview
I specialized in the production of stainless steel unitSelf-priming pump wine,Self-priming Chemical PumpIs in accordance with the new requirements of users, using the new mechanical seal assembly, installation of explosion-proof, long
Years without leakage, JMZ self-priming pump for conveying liquor (-35 ~ +120 ℃) of all alcohol, beverage, dairy, pharmaceutical, gasoline, solvents, oil, syrup and other industries.
FMZ self-primingChemical PumpFor transport (-35 ~ +120 ℃) of concentrated slurry, acid, alkali, salt and other chemical liquids.

Features
The pump has a compact structure, easy operation, self-priming performance, small size, light weight, stable performance, not the bottom valve, without draining, etc. Starting Point
Point. Is the new generation of products. Market and has broad application prospects. The Performance range: flow 3M3 / h ~ 190M3 / h, head is 22m ~ 60m, a diameter: 25mm ~ 150mm.

Usage
Corrosive liquid without solid particles, acids, alkalis, alcohol, bleach, photography solution, nitric acid, hydrochloric acid, hydrofluoric acid, acetic acid, sodium hydroxide, acetone, 4 ethylene oxide, water, salt and so on.

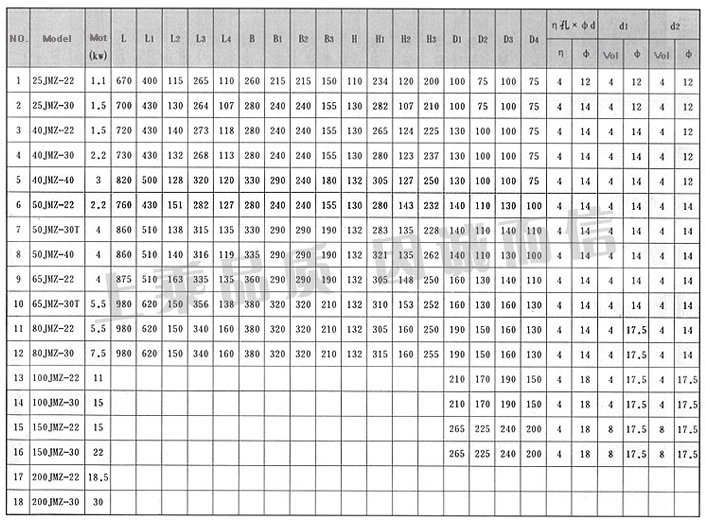

installation size

installation size and dimension

Performance Parameters

Transportation of liquor,
Beverages, steam
Oil, dairy products
Models
Main performance parameters Acid transport,
Base, thick paste
And high-temperature liquid
Body type
Auxiliary power
(KW)
Import
mm
Export
mm

Flow
m3/ H

Head
m

Suction
m

Speed
r / min
25 JMZ-22 25 25 3 22 5 2900 25 FMZ-22 1.1
25 JMZ-30 25 25 3 30 6 2900 25 FMZ-30 1.5
40 JMZ-22 40 25 6 22 5 2900 40 FMZ-22 1.5
40 JMZ-30 40 25 6 30 6 2900 40 FMZ-30 2.2
40 JMZ-40 40 25 6 40 6 2900 40 FMZ-40 3
50 JMZ-22 50 40 12 22 5 2900 50 FMZ-22 2.2
50 JMZ-30T 50 50 20 30 6 2900 50 FMZ-30T 4
50 JMZ-40 50 40 12 40 6 2900 50 FMZ-40 4
65 JMZ-22 65 50 24 22 5 2900 65 FMZ-22 4
65 JMZ-30T 65 65 30 30 6 2900 65 FMZ-30T 5.5
80 JMZ-22 80 65 48 22 5 2900 80 FMZ-22 5.5
80 JMZ-30 80 65 48 30 5 2900 80 FMZ-30 7.5
100 JMZ-22 100 80 80 22 5 2900 125 FMZ-18 11
100 JMZ-30 100 80 100 30 5 2900 100 FMZ-30 15
150 JMZ-22 150 125 160 22 5 2900 150 FMZ-22 15
150 JMZ-30 150 125 160 30 5 2900 150 FMZ-30 22
200 JMZ-22 200 150 200 22 5 1450 200 FMZ-22 18.5
200 JMZ-30 200 150 200 30 5 1450 200 FMZ-30 30
