china CQ type engineering plastic magnetic drive pumps manufacturers
Product Overview
CQ type engineering plasticMagnetic drive pump(Referred to asMagnetic Pump), Is the application of modern magnetic theory, the principle of permanent magnet coupling forCentrifugal pumpThe new product, magnetic pump to replace the static seal dynamic sealing, so that the pump flow passage components are completely sealed state, solve the other pump mechanical seal can not avoid running, run, drop the drawbacks. Magnetic pump is corrosion resistant, high strength engineering plastics, corundum ceramic, stainless steel for manufacturing materials, so it has good corrosion resistance, and can be transported from the contaminated medium.
Features
Magnetic pump, compact structure, beautiful appearance, small size, low noise, reliable operation, use and maintenance. Can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, defense, scientific research institutions, metallurgy, dyes and other units pumping acid, lye, oils, rare and precious liquid, venom, volatile liquid, and circulating water equipment, filtration machine matching. Particularly susceptible to leakage, flammable, explosive liquid pumping. Explosion-proof motor equipment used in this pump is desirable. (Pump material: reinforced polypropylene)

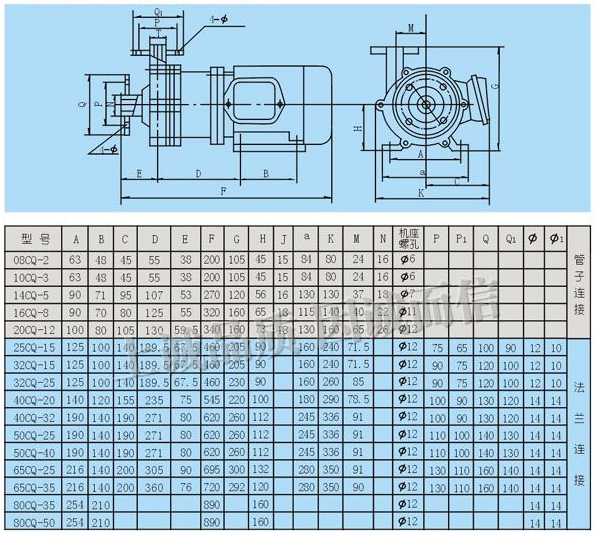

installation size
Performance Parameters
|
Model |
Caliber | Head (M) |
Flow (L / min) |
Motor Power (KW) |
Speed (R / min) |
Voltage (V) |
Suction (M) |
|
| Import (Mm) |
Exit (mm) | |||||||
| 8CQ-1.2 | 8 | 6 | 1.2 | 15 | 0.025 | 2800 | 220 | 2 |
| 10CQ-3 | 10 | 8 | 3 | 19 | 0.025 | 〃 | 220 | 2.5 |
| 14CQ-5 | 14 | 10 | 5 | 20 | 0.12 | 〃 | 380 | 3 |
| 16CQ-8 | 16 | 12 | 8 | 25 | 0.18 | 〃 | 〃 | 3 |
| 20CQ-12 | 20 | 14 | 12 | 50 | 0.37 | 〃 | 〃 | 4 |
| 25CQ-15 | 25 | 20 | 15 | 110 | 1.10 | 〃 | 〃 | 4 |
| 32CQ-15 | 32 | 25 | 15 | 110 | 1.10 | 〃 | 〃 | 4 |
| 32CQ-25 | 32 | 25 | 25 | 110 | 1.10 | 〃 | 〃 | 4 |
| 40CQ-20 | 40 | 32 | 20 | 180 | 2.2 | 〃 | 〃 | 7.5 |
| 40CQ-40 | 40 | 32 | 40 | 200 | 4 | 〃 | 〃 | 8 |
| 50CQ-25 | 50 | 40 | 25 | 240 | 4 | 〃 | 〃 | 8.3 |
| 50CQ-40 | 50 | 40 | 40 | 220 | 4 | 〃 | 〃 | 7 |
| 50CQ-50 | 50 | 40 | 50 | 130 | 5.5 | 〃 | 〃 | 8 |
| 65CQ-25 | 65 | 50 | 25 | 280 | 5.5 | 〃 | 〃 | 7 |
| 65CQ-35 | 65 | 50 | 35 | 450 | 7.5 | 〃 | 〃 | 6 |
| 80CQ-35 | 80 | 65 | 35 | 850 | 11 | 〃 | 〃 | 7 |
| 80CQ-50 | 80 | 65 | 50 | 850 | 15 | 〃 | 〃 | 7 |
